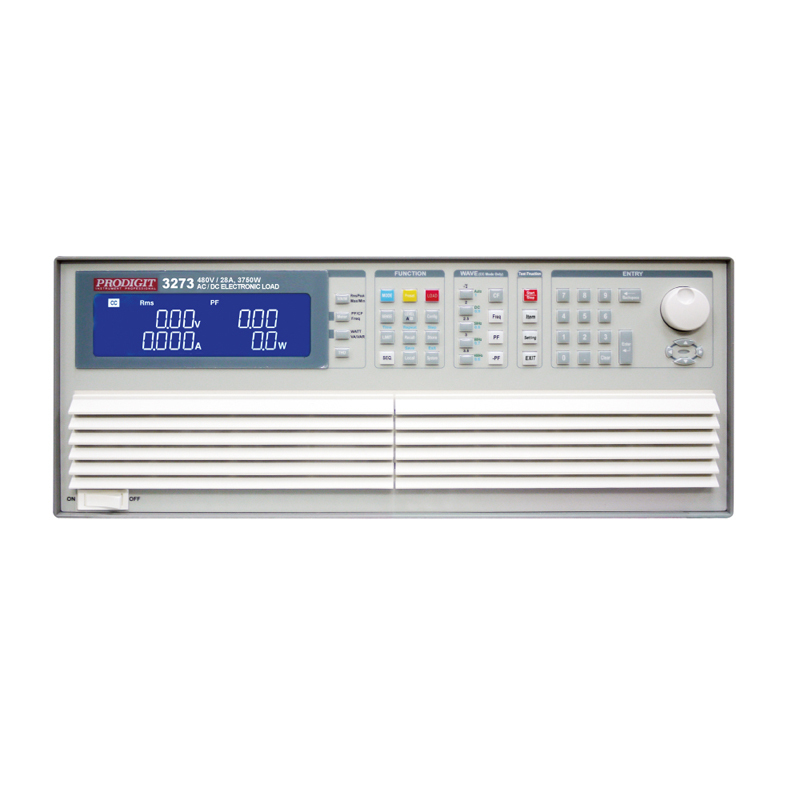

3273 AC & DC Electronic Load

480V, 28A, 3750W

Description

l 3270 Series is suitable for the step, square and sine wave of the AC Power device test, especially for the uninterruptible power supply UPS, Inverter, fuses, circuit breakers, power regulator AVR, battery, AC / DC power supply / components ... and so on, absolutely is the best test solution in the market.

l Master / Slave has 2 operating modes

1. Boost mode is for master / slave parallel application, the setting current will be actively shared to each load, Master ammeter will show the total current that is the sum of all ammeters, Slave voltmeter will show SL1 ~ SL2, the others are unchanged.

2. 3PH mode is for 3 phase application, three 3270 series can be connected for three phase £G or Y connection, the setting current value (single-phase current value) will be sent to each Slave unit automatically, the user does not have to set each unit.

Features

l 4 digit V / A/W Meter¡Adisplay the Voltage¡]Vrms, Vpeak, Vmax., Vmin¡^¡BCurrent ¡]Irms, Ipeak, Imax., Imin.¡^¡BWatt, Voltampere ¡]VA¡^¡BFrequency¡BCrest Factor¡BPower Factor¡BTotal Harmonic Distortion of Voltage¡]VTHD¡^, Voltage Harmonic¡]VH¡^¡BTotal Harmonic Distortion of Current¡]ITHD¡^, Current Harmonic¡]IH¡^

l CC, Linear CC, CR, CV, CP and AC Rectifier Load mode

l Voltage Optional : 425Vrms / 600Vdc ( except 3273 / 3274)

l Crest factor range : 1.414~5.0

l Power factor¡]PF) range : 0~1 lead or¡]-1~0¡^lag

l Built-in function test modes include UPS Efficiency, PV Inverter Efficiency, UPS Back-up time, Battery Discharge time, UPS transfer time, Fuse/Breaker Trip/Non-Trip, Short circuit , OCP, OPP test modes

l Turbo mode is able to increase to 2 times the current and power of electronic load in a short period which is the most suitable for Fuse / Breaker test and short circuit, OCP, OPP test of AC power supply

l Time measurement can be applied to batteries, UPS, fuses and circuit breakers and other tests

l Eight units parallel up to 90KW and three-phase ¡µ or Y load connection can be synchronized control by one master unit

l Support on-load boot; at first set Load ON to support on-load boot, inverter or uninterruptible power supply is turned on directly with the set load current, used to verify whether the starter is stable when the Inverter is connected.

l Supports the loading and unloading angle control; the loading and unloading angle control, the full range of 0-359 degrees can be set to verify whether the Inverter output voltage transient response is stable when the actual electrical plugging and unplugging, and whether Overshoot/Undershoot is within the allowable range.

l Support positive half-cycle or negative half-cycle loading; used to verify whether the Inverter output voltage remains stable when the actual appliance has only positive half-cycle or negative half-cycle load current.

l Supports SCR/TRIAC current phase modulation waveforms, 90 degree Trailing edge and Leading Edge.

l Frequency Range : DC, 40~440Hz

l Voltage and current monitoring

l Can be controlled by external voltage for CC, Linear CC, CR, CV, CP operating modes

l Protection against V, I, W, and¢J

l Optional interface¡GGPIB¡BRS232¡BUSB¡BLAN

l The most complete measurement capabilities

3270 Series AC & DC electronic load built-in 16-bit A/D and DSP precision measurement circuit, provides accurate measurements, measurement items have Vrms, Arms, Watt, VA, CF, PF, THD, VTHD, ITHD, Ipeak, Amax, Amin, Vmax, and Vmin

In addition to these measurement functions, it also provides time measurement¡Aproducts such as UPS, fuses and circuit breakers etc. trip or blow time and transfer time for Off-line UPS.

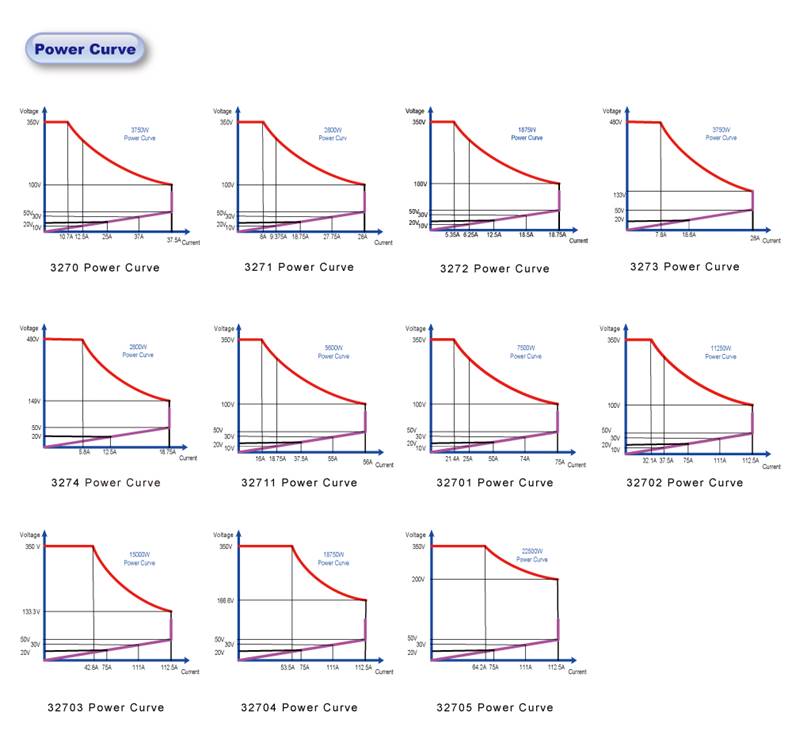

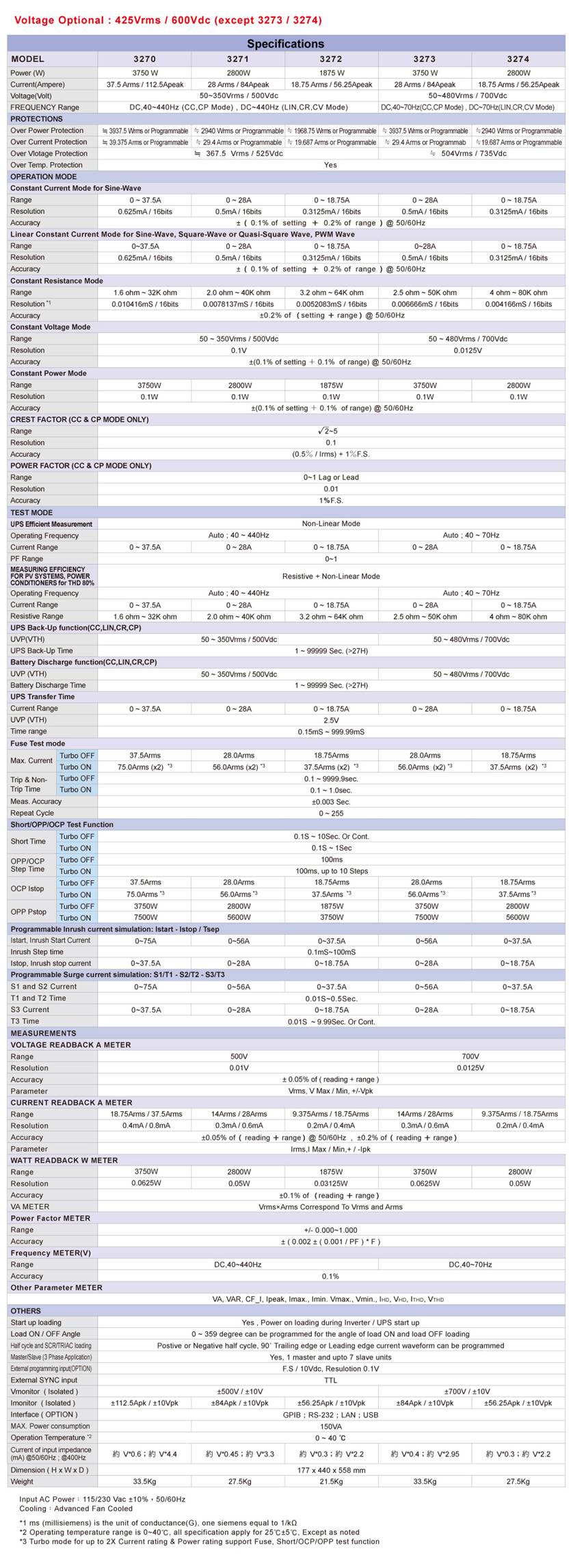

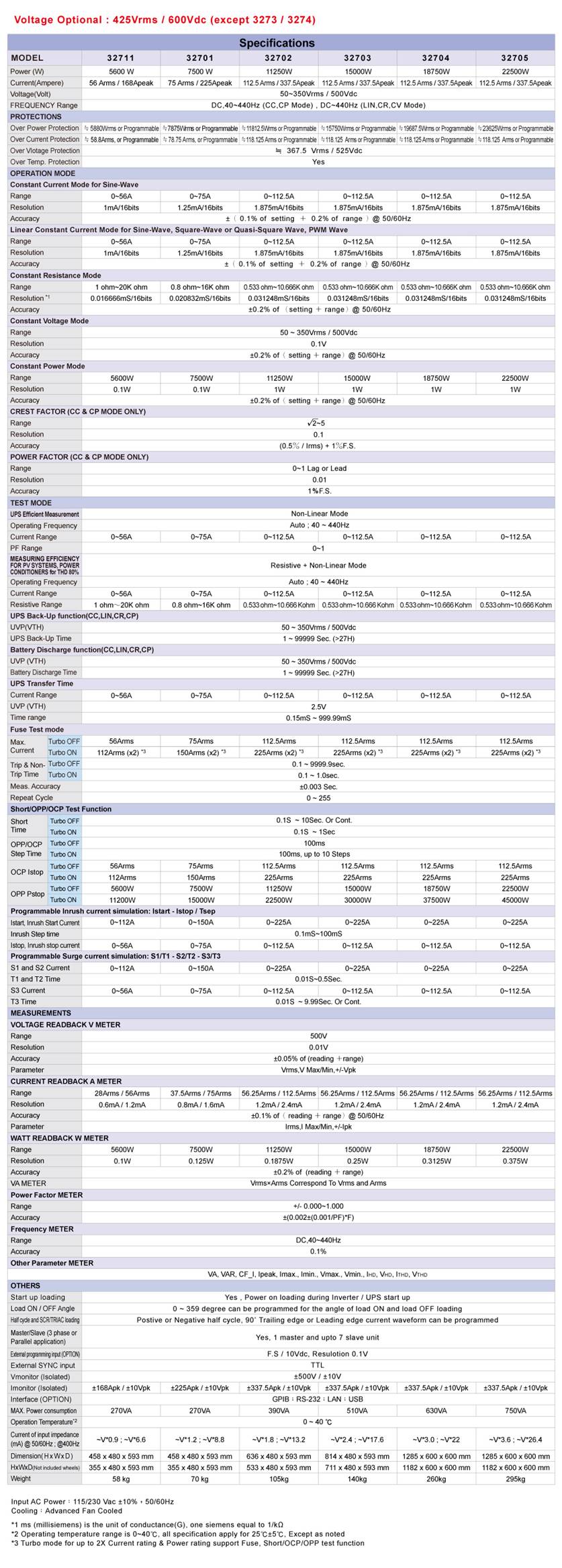

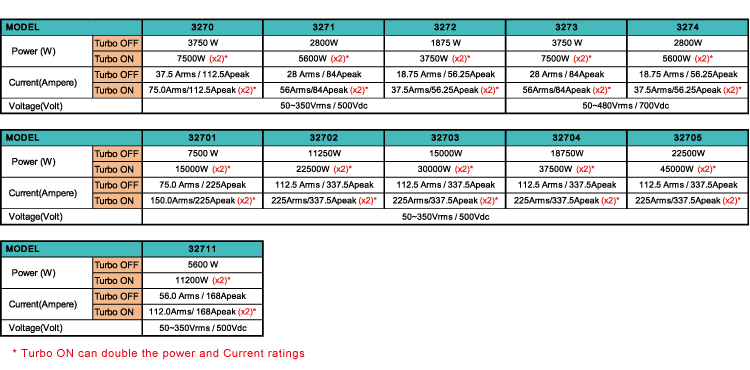

Specifications
